RELAIS

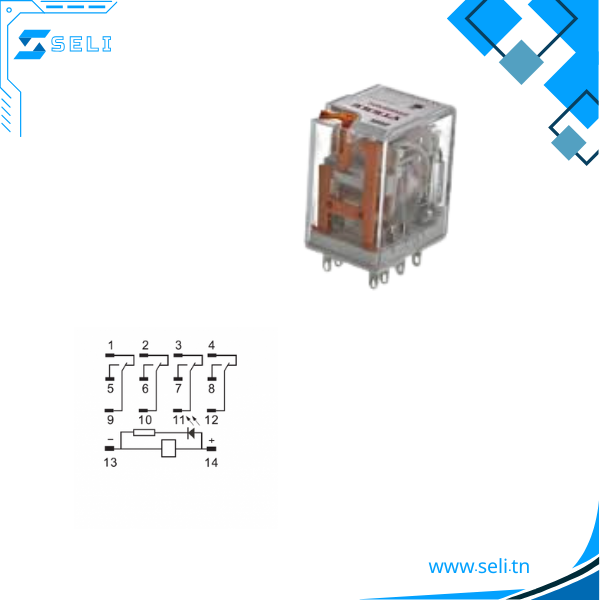

RELAIS ELECTROMAGNETIQUE SRN-24V-AC BOBINE 24VDC 4 INVERSEURS 14 BROCHES SANS EMBASE
SKU: SRN14-24AC
Disponibilité: ✅ Produit disponible !
16,500 DT
Produits similaires
Ce relais est fabriqué conformément à la norme IEC-61810-1.
Il est équipé d’un mécanisme de test et d’une LED d’indication.
Les relais CA sont dotés de composants mécaniques orange, tandis que les relais CC sont dotés de composants mécaniques bleus.
| Parameter | Value |
| Insulation resistance | ≥500MΩ 500VDC |
| Ambient temperature | -40℃～+70℃（No condensation) |
| Dielectric strength | Between coil and contact ≥1500VAC1min |
| Between open contacts≥1000VAC1min | |
| Between contacts≥1500VAC1min | |
| Operate / Release time | ≤25ms/25ms |
| Terminal type | Socket mounting |
| Rated coil power | 0.9W/1.2VA |
| Contact form | 4Z,4H,4D |
| Contact resistance | ≤ 100MΩ(1A 6VDC) |
| Contact material | AgCdO, AgSnO2 |
| Contact capacity | 5A 250VAC/30VDC |
